Product Introduction

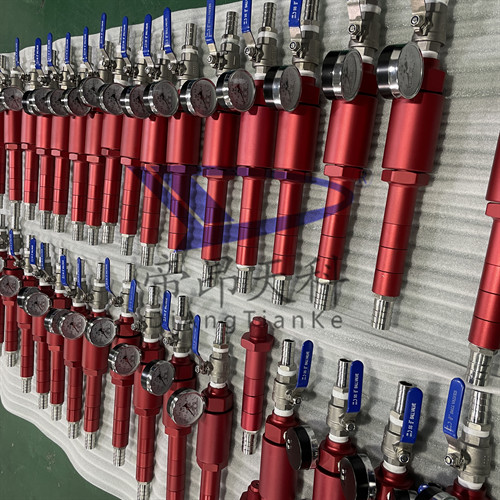

This liquid dispenser is energy-saving and environmentally friendly, does not require electricity, and has no consumables; It is an automatic mixing and mixing device that only needs to be connected to a water source to work, suitable for use in situations where the mother liquor needs to be diluted with water. Replacing manual liquid preparation, the efficiency is higher, the concentration is more uniform, and the ratio is more accurate. Easy to operate, reliable in quality, and durable.
Product parameters
| Adjustable concentration range | 0-26% | Work efficiency | Max 1500L/H |
| Working water pressure | 0.2-0.6mpa | Main material | Aluminum alloy |
| Inlet diameter | 19mm | Water outlet diameter | 25mm |
| Standard length of inlet pipe: | 2m | Standard length of water outlet pipe | 2m |
Product advantages
Efficient and stable: The system adopts advanced technology and high-quality materials manufacturing to ensure efficient and stable liquid purification effect.
Easy to maintain: The system structure is compact, easy to operate, and easy to maintain, reducing maintenance costs for users.
High cost-effectiveness: The system has excellent performance and reasonable price, providing users with a cost-effective cutting fluid treatment solution.
Professional services: The company provides professional pre-sales consultation, after-sales service, and technical support to ensure that users have a satisfactory experience during use.
Operation steps:
The first step is to connect the water pipe to the inlet, pay attention to tightening the inlet to prevent water leakage, connect the outlet pipe and prepare the liquid receiving bucket;
Step two, insert the cutting fluid bucket and fix it vertically;
Step three, open the inlet valve;
Step four, adjust the size of the inlet valve, measure the concentration ratio of the effluent with a refractometer, and make appropriate adjustments to achieve the normal mixing ratio;
Step five, adjust the concentration of the regulating valve to the normal required ratio, tighten the locking nut of the regulating valve to prevent accidental touch from causing concentration changes;
Step 6: Once the ratio is normal, automatic liquid dispensing can be performed.
About Us
Guangzhou Di'ang Tianke is an enterprise specializing in one-stop intelligent purification solutions for metalworking fluids. Our company is committed to providing standardized and professional services to customers, ensuring green closed-loop management of metalworking fluids from liquid preparation, supply, online purification to waste liquid recycling, and helping machining enterprises reduce costs and increase efficiency.
