Product Introduction

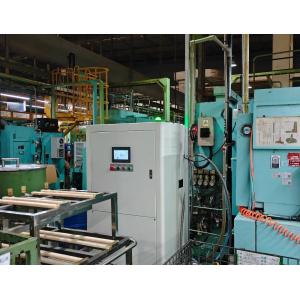

The intelligent cutting fluid proportioning machine is a modern device designed to improve the accuracy and efficiency of cutting fluid proportioning, reduce manual operation, and ensure stable performance of cutting fluid. The following is a detailed introduction to the intelligent cutting fluid dispensing machine.
Parameters:
1. Equipment size: 950 * 600 * 1580mm;
2. Processing flow rate: 1000 liters/hour;
3. Water tank capacity: 120 liters;
4. Concentration range: 0-50%;
5. Working pressure: 0.2-0.6 MPa;
6. Working voltage: AC220V;
7. Equipment power: 1800W;
8. Operating temperature: 0-50 ℃.
Function
1. Intelligent liquid preparation accurately quantifies the ratio to ensure stable concentration and reduce waste of raw materials;
2. Intelligent start stop, PLC program control, intelligent liquid dispensing;
3. Automatic sensing of proportioning liquid level and automatic start stop, without the need for manual operation;
4. Implement monitoring of the original liquid and water source, with automatic alarm prompts for liquid shortage;
5. The mobile body is easy to install and can be used by plugging in the connector;
6. Intelligent data storage, automatically saving the usage of the original liquid and water for each preparation, making it easy to trace in the future.
Precautions for use
1. Before using the intelligent cutting fluid dispensing machine, ensure that the equipment has been correctly installed and connected to the water source and cutting fluid container.
2. When setting the proportioning parameters, the concentration and required ratio of the cutting fluid should be accurately input according to the machining requirements.
3. During the operation of the equipment, the operating status and liquid level of the equipment should be regularly checked to ensure its normal operation.
4. Regularly maintain and upkeep the equipment, such as cleaning the storage tank, replacing filters, etc., to extend the service life of the equipment.
