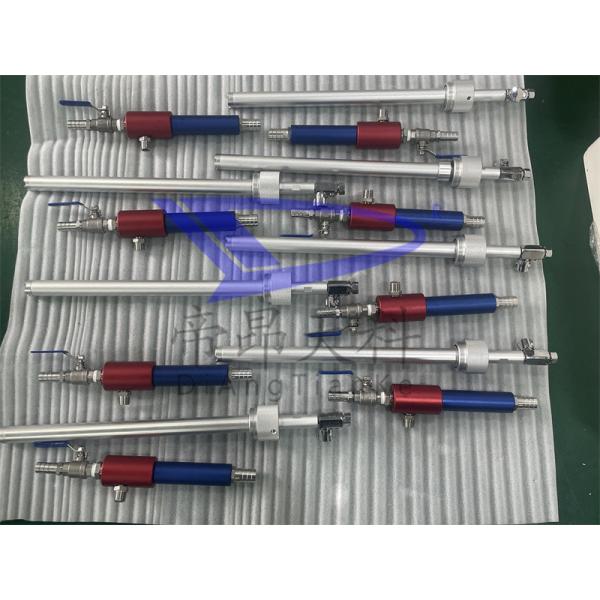

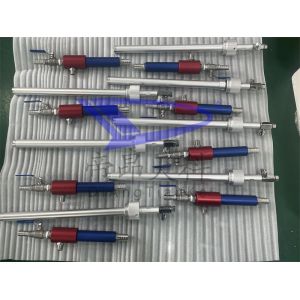

Product Introduction
This liquid dispenser is energy-saving and environmentally friendly, does not require electricity, and has no consumables; It is an automatic mixing and mixing device that only needs to be connected to a water source to work, suitable for use in situations where the mother liquor needs to be diluted with water. Replacing manual liquid preparation, the efficiency is higher, the concentration is more uniform, and the ratio is more accurate. Easy to operate, reliable in quality, and durable.
Product parameters
| Adjustable concentration range | 0-26% | Work efficiency | Max 1500L/H |
| Working water pressure | 0.2-0.6mpa | Main material | Aluminum alloy |
| Inlet diameter | 19mm | Water outlet diameter | 25mm |
| Standard length of inlet pipe: | 2m | Standard length of water outlet pipe | 2m |
Product Features
- Simple and practical, lightweight and easy to take, easy to store.
- High degree of automation, capable of taking care of every drop of cutting fluid mother liquor, perfectly blending water and cutting fluid, and preparing a concentration that is both uniform and precise.
- High cost-effectiveness, no need for electricity, no consumables, low operating costs.
- Vacuum suction mode, with internal swirl mixing and stirring structure.
- Solve the problem of inaccurate and wasteful manual liquid preparation, and simplify the liquid preparation process.
Operation steps:
- The first step is to connect the water pipe to the inlet, pay attention to tightening the inlet to prevent water leakage, connect the outlet pipe and prepare the liquid receiving bucket;
- Step two, insert the cutting fluid bucket and fix it vertically;
- Step three, open the inlet valve;
- Step four, adjust the size of the inlet valve, measure the concentration ratio of the effluent with a refractometer, and make appropriate adjustments to achieve the normal mixing ratio;
- Step five, adjust the concentration of the regulating valve to the normal required ratio, tighten the locking nut of the regulating valve to prevent accidental touch from causing concentration changes;
- Step 6: Once the ratio is normal, automatic liquid dispensing can be performed.
